*Some features or components may differ from those displayed due to availability.
Crossbar Hub-Drive (H9): City, Adventure, Mountain
The Wisper Wayfarer H9 hub drive, crossbar is the perfect all-rounder. In City spec it is a comfortable commuter or day to day workhorse but underneath the city exterior beats the heart of a true thoroughbred, the Wayfarer super hi torque motor developing 50Nm at the rear wheel, almost the same as 100Nm at the pedals. Strip off the comfort products and change the tyres and you have the perfect off-roader for a day in the hills and forests. If you require further assistance, please do not hesitate to contact us.
Wisper Hi Torque Rear Hub Drive 43.2V 250W Nominal
In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Long range 700Wh
450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)
Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster
Hand welded, 6061 Alloy T4 and T6 tempered
Pillar Box Red or Sky Blue 6 coats
Suntour XCM 30 100mm travel
eMTB 760mm anodised black
Throttle only range
Using your Wisper bike on throttle only will reduce your range by up to 65% and the TTP will not help increase range whilst you are using the throttle only. If your bike has been upgraded so it works on the throttle only, we still suggest pedalling when you are able to do so. Use the throttle only function when you need to rest or to help you pull away when setting off.
Wisper Comfort, eBike with seat handle
Black anodised alloy
Shimano Altus 8 speed with Rapid Fire shifter
KMC X8 rust resist 8 speed
13 to 34
Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm
Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)
Kenda 27.5” 2.2 high puncture resistance with reflector
MTB/Adventure Bike Tyre Upgrade (optional extra)
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection 3mm GreenGuard layer, SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-Mountain or E-Adventure Bike. Wayfarer rims can take tyres of up to 2.25″ wide without fouling forks or frame. Tyres larger than 2.25″ wide can only be used without mudguards.
Black Anodised Aluminium 2.6″
Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery
Magix black anodised 70mm
31.6mm 350mm with 100mm safety line
Wisper integrated custom, 17kg limit
Front Rack (optional extra)
Wisper integrated custom, 10kg limit
Max Weight Load Inc. Luggage

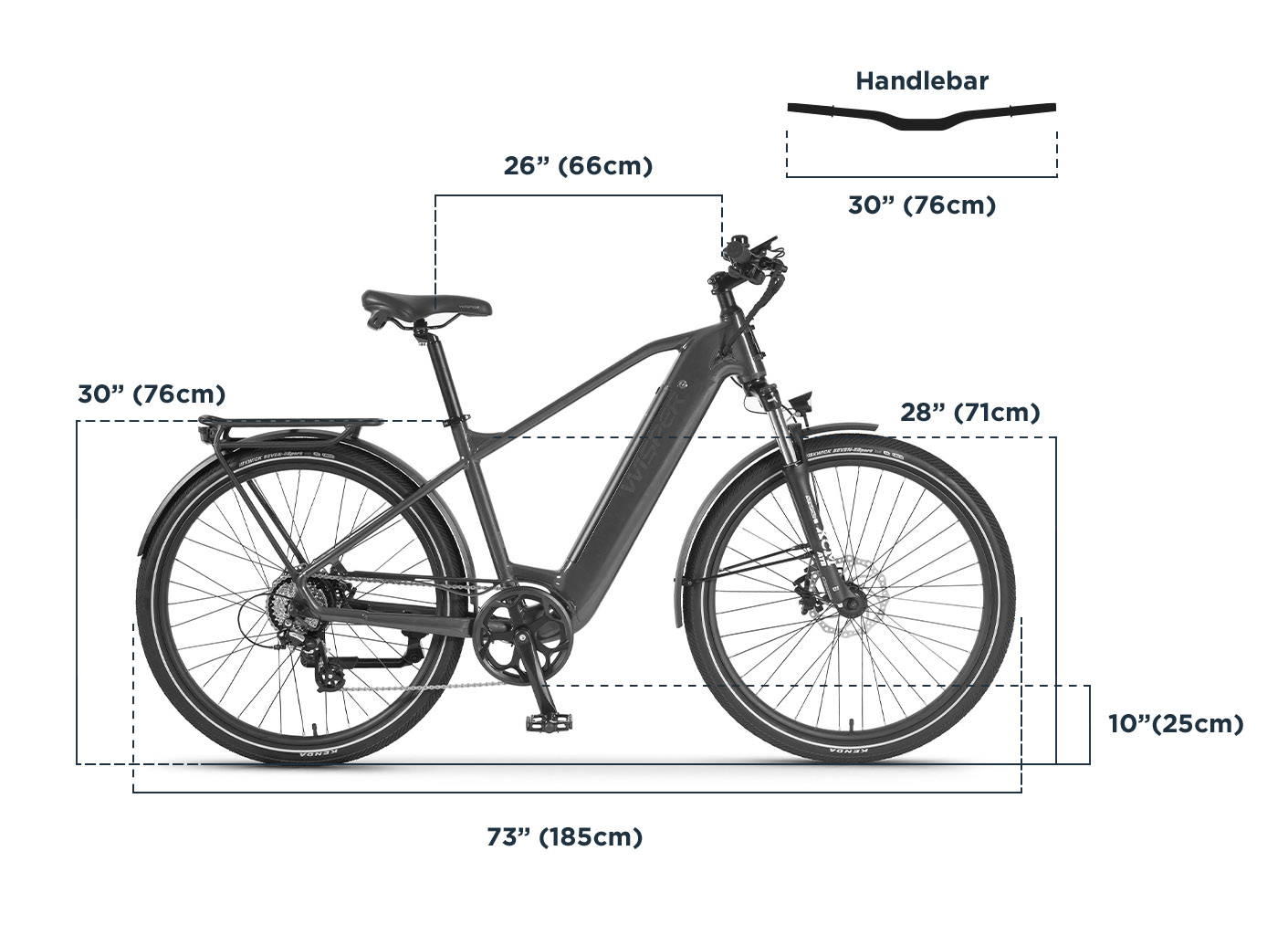

Sizing and Dimensions
