*Some features or components may differ from those displayed due to availability.

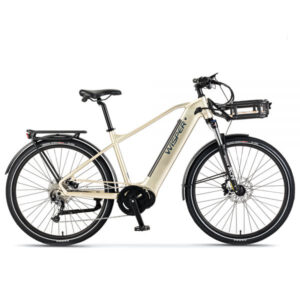

Wayfarer M9 Mid-Drive Crossbar : City , Adventure, Mountain
The Wayfarer M9 by Wisper mid-drive, the crossbar is the perfect all-rounder. In City spec it is a comfortable commuter or day to day workhorse but underneath the city exterior beats the heart of a true thoroughbred, the Wayfarer super hi torque motor developing 100Nm. Strip off the comfort products and change the tyres and you have the perfect off-roader for a day in the hills and forests. If you require further assistance, please do not hesitate to contact us.
Technical Specification
Motor
Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal
Lithium Battery
In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh
Assisted range
450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)
Controls
Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster
Bicycle weight
450Wh: 27kg
700Wh: 29kg
Frame
Hand welded, 6061 Alloy T4 and T6 tempered
Frame size
18” 48cm
Frame Colour
Iridium Silver 6 coats
Forks
Suntour XCM 32 100mm travel, through axle
Bars
eMTB 760mm anodised black
Stem
Magix black anodised 70mm
Seat post
31.6mm 350mm with 100mm safety line
Saddle
Wisper Comfort, eBike with seat handle
Kick stand
Black anodised alloy
Gears
Shimano Alivio 9 speed with Rapid Fire shifter
Chain
KMC X9 rust resist 9 speed
Chain drive
44t Rear
Freewheel
11 to 36
Pedals
Alloy
Brakes
Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm
Wheels
Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)
Tyres
Kenda 27.5” 2.2 high puncture resistance with reflector
Adventure/MTB Bike Tyre Upgrade (optional extra)
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection 3mm GreenGuard layer, SnakeSkin sidewall. ECE-R75 approved for great riding fun on your eMTB or E-Adventure Bike. Wayfarer rims can take tyres of up to 2.25″ wide without fouling forks or frame. Tyres of more than 2.25″ can only be used without mudguards.
Mudguards
Black Anodised Aluminium 2.6″
Lighting
Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery
Rear Rack
Wisper integrated custom, 17kg limit
Front Rack (optional extra)
Wisper integrated custom, 10kg limit
Max Weight Load Inc. Luggage
21st 135kg
Sizing and Dimensions
Bruce –
I bought two Wisper bikes (M7 & M9) through the Northern Ireland Agent (Stewart Electric) and received excellent customer service throughout. The bikes themselves are very good quality and soundly built. I’m a retired mechanical engineer so I’m able to make a professional assessment. Now in my mid 60s, and with bad knees and back, I thought my cycling days were over, but this bike has opened up a whole new set of possibilities. The torque from the electric motor is excellent allowing me to go further and faster than i ever could on a non electric bike, which is now laying dormant in the garage. If you are contemplating buying an e-bike, I can highly recommend the Wisper bikes.
