Wayfarer H9 Hub-Drive Crossbar (Mountain Bike)

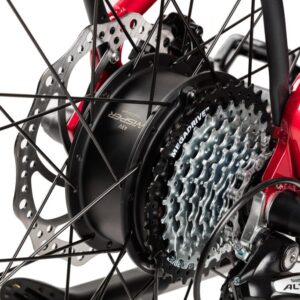

Motor

Wisper Hi Torque Rear Hub Drive 43.2V 250W Nominal

Lithium Battery

In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range

Total load, terrain, road surface, tyre pressures, speed, power setting, wind conditions and motor power all have a huge bearing on an eBike’s bikes range. With this in mind, you may expect to achieve the following AVERAGE ranges. Due to the number of outside factors affecting all electric bikes, our published ranges are estimates only, based on our experience and are not guaranteed.
450Wh battery 20 – 40 miles (30 – 60km)
700Wh battery 30 – 60 miles (50 – 100km)

Controls

Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster

Bicycle weight

450Wh: 26kg
700Wh: 28kg

Frame

Hand welded, 6061 Alloy T4 and T6 tempered

Frame size

18” 46cm

Frame Colour

Pillar Box Red or Sky Blue 6 coats

Forks

Suntour XCM 30 100mm travel

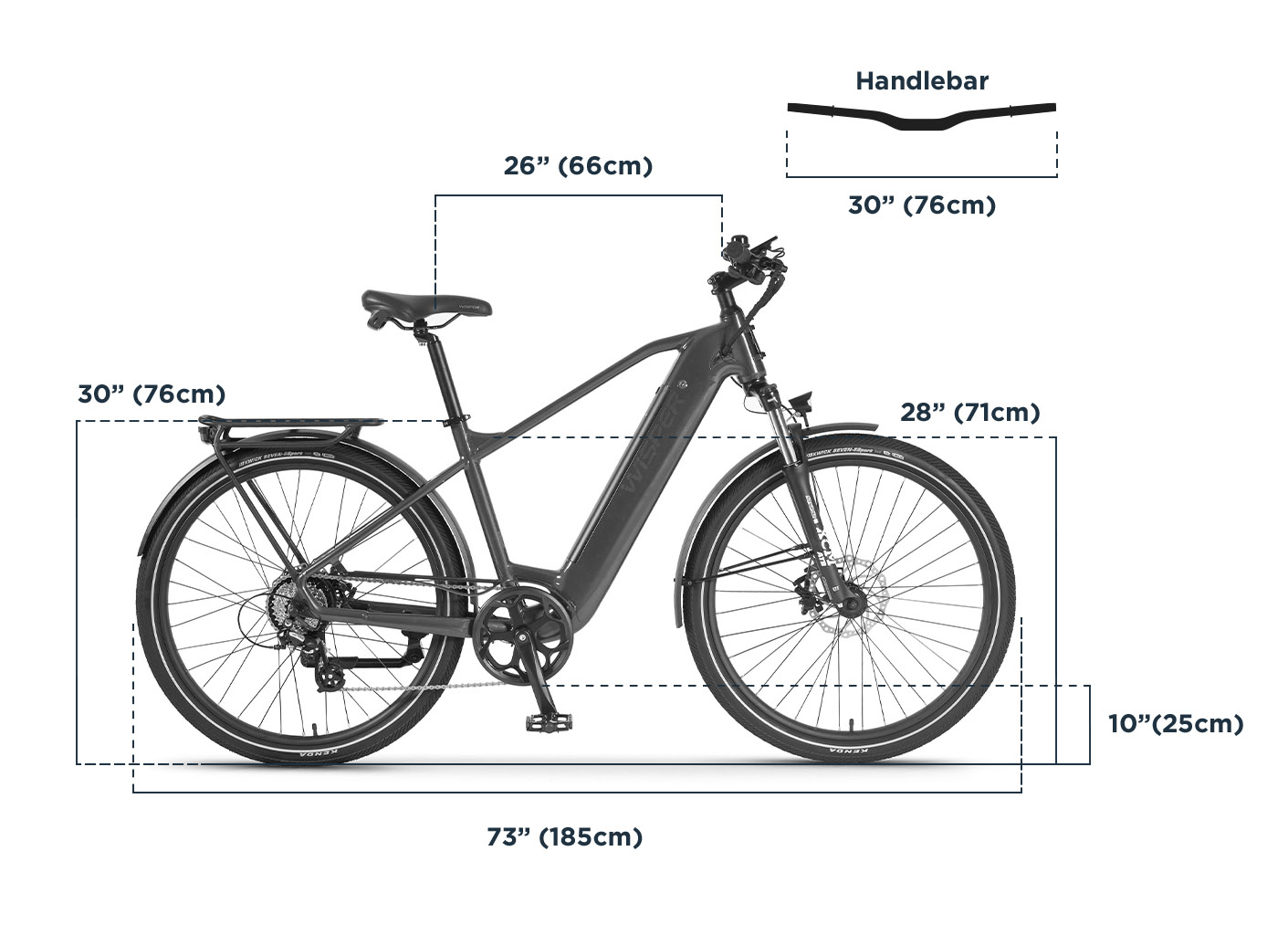

Sizing and Dimensions

Bars

eMTB 760mm anodised black

Stem

Magix black anodised 70mm

Seat post

31.6mm 350mm with 100mm safety line

Saddle

Wisper Comfort, eBike with seat handle

Kick stand

Black anodised alloy

Gears

Shimano Altus 8 speed with Rapid Fire shifter

Chain

KMC X8 rust resist 8 speed

Chain drive

Prowheel 48t

Freewheel

13 to 34

Brakes

Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels

Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

Tyres

Kenda 27.5” 2.2 high puncture resistance with reflector

Tyre Upgrade
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding
27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection due to the 3mm GreenGuard layer and SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-MTB or E-Adventure Bike.

Mudguards

Black Anodised Aluminium 2.6″

Lighting

Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Rear Rack

Wisper integrated custom, 17kg limit

Max Weight Load Inc. Luggage
21st 135kg
